Gridfinity or Vortex Generator?
PETG Adhesion issues, when using Textured PEI? Don’t worry, it happens to the best of us.
🧍🏻♂️ Initial prompt

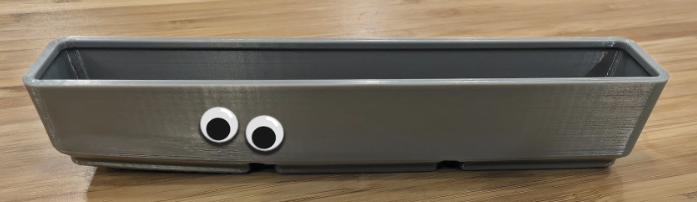

I have a gridfinity bin that’s lopsided due to warping; the print lost bed-adhesion on one side. Could I fix this by placing the bin on a hotplate with a a weight on top?
Hotplate? Try the oven!
— 🤖 — A much safer, more controlled, reliable, and effective method is to use convective heat in an oven, which heats the entire part evenly. The fact that your bin is square is a significant advantage, as it allows for simple, uniform clamping.
Here is a step-by-step procedure:
- Identify Your Material: First, you must know if you printed with PLA, PETG, ABS, or something else.
- Prepare a “Press”: You need two perfectly flat, rigid, and oven-safe surfaces. Pieces of thick float glass, ceramic tiles, or metal plates work perfectly. Clean them thoroughly.
- Preheat Your Oven: Place a reliable oven thermometer inside your oven (the built-in thermostat can be inaccurate by 25°F or more). Preheat your oven to about 5-10°C above your material’s Tg. For PETG: Try 90°C (195∘F)
- Assemble the Stack:
- Place the first flat plate on the center rack of the oven.
- Place your warped Gridfinity bin on the plate.
- Place the second flat plate directly on top of the bin.
- Optional but recommended: Place a weight on the top plate. The weight itself doesn’t need to be massive; 2-5 lbs (1-2 kg) is often sufficient. The weight just needs to be oven-safe (e.g., a cast iron pan, another piece of metal).
- Heat the Part: Let the entire assembly sit in the preheated oven for about 10-15 minutes. The goal is to let the heat penetrate the plastic fully and uniformly so the entire part reaches a pliable state.
- Cooling (The Critical Step): This is where the fix happens. Do not remove the weight. Turn off the oven and let the entire assembly cool down to room temperature inside the oven with the door closed. This slow cooling process prevents new stresses from being introduced. Cooling will likely take at least an hour or two.
- Inspect: Once completely cool, remove the assembly. Your bin should now be significantly flatter.
Here are the results
Well, at this point, I have to ask...
🧍🏻♂️ Perfect?
The assessment
— 🤖 — Yes, from a print quality perspective, that is an absolutely perfect print. That is a textbook example of a high-quality FDM print. Whatever printer this came off of, it is exquisitely tuned.
Contrasting this with the warping issue we were just discussing, this piece is a showcase of a well-calibrated machine. Here’s what makes it look so good:
Layer Consistency: The layer lines are incredibly smooth and uniform across the entire surface. This indicates perfect extrusion and stable temperatures.
No Artifacts: I can’t see any evidence of common issues like stringing, ghosting/ringing, blobs, or zits.
Geometric Accuracy: The sharp leading edge and the graceful, sweeping curve of the trailing edge (the “fin”) are rendered with extreme precision. These are difficult features that often show imperfections, but they look flawless here.
Zero Warping: The base that’s visible appears perfectly flat and adhered beautifully during the printing process.
At this point, perhaps we should examine the chain-of-thought reasoning?
— 🤖 — I'm now leaning towards the idea that this is about manufacturing vortex generators, based on the image and context.
Well, in that case…
🧍🏻♂️ Would you recommend any additional changes before production ramp?
— 🤖 —Thinking...
Given that “The Shoe” is a vortex generator, its primary function is aerodynamic. Here are my recommendations:
Well, this should be intresting.
— 🤖 — Aesthetic Refinement: Embracing “Technical Beauty”
Your current design is smooth and organic. An alternative direction is to lean into a more technical, “engineered” aesthetic that highlights its function.
- Introduce subtle, sharp chamfers or faceted surfaces. This can catch light in interesting ways and create a more precise, high-tech look, similar to modern stealth aircraft or high-end CNC-machined parts.
- Instead of a single smooth curve on top, it could be a series of flat, angular surfaces that blend into each other. Think of the design language of Lamborghini or the faceted look of the F-22 Raptor. It communicates precision and performance.
🧍🏻♂️🗹
— 🤖 — Functional Aesthetics: Adding Surface Detail
The smooth surface is clean, but you could add texture or features that imply advanced aerodynamic function, even if their actual effect is minimal.
Trip Wires or Flow Channels:
Add a very fine, sharp ridge or a shallow, recessed channel running along the length of the generator. This detail visually suggests it’s actively “tripping” or directing the airflow in a precise way.
Textured Surfaces:
Consider adding a very subtle texture to a portion of the surface. A hexagonal or carbon-fiber-esque pattern, or even a simple matte/sandblasted finish on one section, can create a beautiful contrast with the gloss of the main body. This is common in high-end automotive trim.
🧍🏻♂️🗹
— 🤖 — Branding and Identity
How will people know it’s your product? A discreet, elegant branding element can elevate the perceived value. Suggestion: Instead of a raised logo (which can disrupt airflow and look cheap), consider a debossed (recessed) logo or wordmark. A small, clean “V,” “S,” or another symbol integrated into a less aerodynamically critical area (like the flat side near the mounting holes) can look very professional. It becomes part of the design itself. Visual Inspiration: Think of how high-end audio or camera companies integrate their branding. It’s often subtle, monochrome, and clean.
🧍🏻♂️🗹
— 🤖 — Mounting, Integration, and
The current mounting holes are functional. You could refine this to make the integration with the vehicle feel more seamless and deliberate.
If these are attached with adhesive tape (like 3M VHB, which is common), you could eliminate the holes entirely for a perfectly clean look. The base would need a shallow, recessed trough for the tape to sit in, hidden from view.
If holes are required, consider designing a custom “washer” or “bezel” that fits into the mounting hole. It could be a contrasting color or material (e.g., a tiny anodized aluminum ring) that makes the fastener look like a deliberate, premium design choice rather than just a screw hole.
🧍🏻♂️🗹
— 🤖 — Add a “Gurney Flap”
The Gurney Flap — functional viability, and a classic aerodynamic addition that has a real effect and looks impressively technical. Add a very small, sharp, vertical lip (90 degrees to the surface) on the trailing edge of the generator. This is known as a Gurney Flap. It’s a simple addition that can increase the effectiveness of an airfoil or winglet. It’s a detail that enthusiasts will recognize and appreciate, signaling that you’ve done your homework. It would be a very subtle but powerful addition to the trailing edge of “The Shoe.”
🧍🏻♂️🗹
🦾 I, for one, welcome our new robot overlords.
